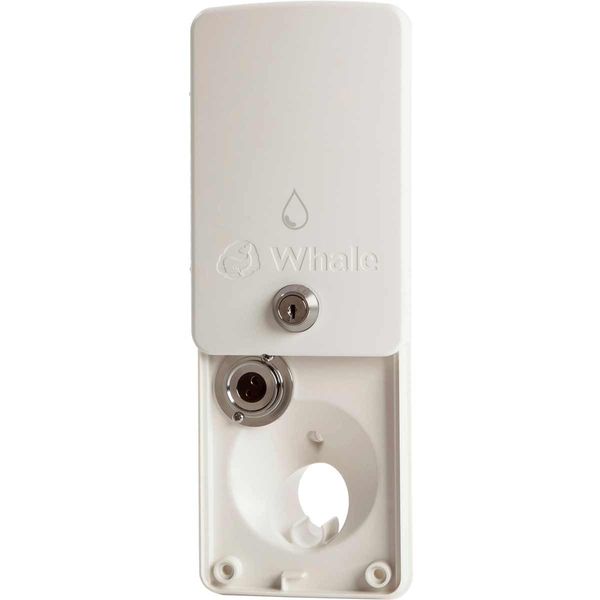

Whale onboard motorhome tank fill and 12V socket SO2500C features a unique 2-in-1 design, including a 12V pump powerfully and onboard tan fill, all in one socket.
The secure hose clip keeps the pump in place during filling. It incorporates a lock to protect your water supply and a vent pipe ensuring the tank is vented at all times, preventing airlocks. This socket is suitable for use with and standard hose and is to be used with cold freshwater only.
Technical Information
Voltage: 12V DC
Weight: 0.18kg (0.4 lbs)
Plumbing Connections: 40mm diameter pipe, 10mm diameter bleed pipe
Materials: ABS
Compliance: IP45 rated when lid closed
Height: Open: 270mm (10.63"), Closed: 164mm (6.46")
Width: 103mm (4.06")
Depth: 66mm (2.6")
Diameter: Socket: 10mm (0.39"), Fill: 40mm (1.57")
Distance between mounting holes: 124mm x 75mm (4.96" x 3.03")
