Description

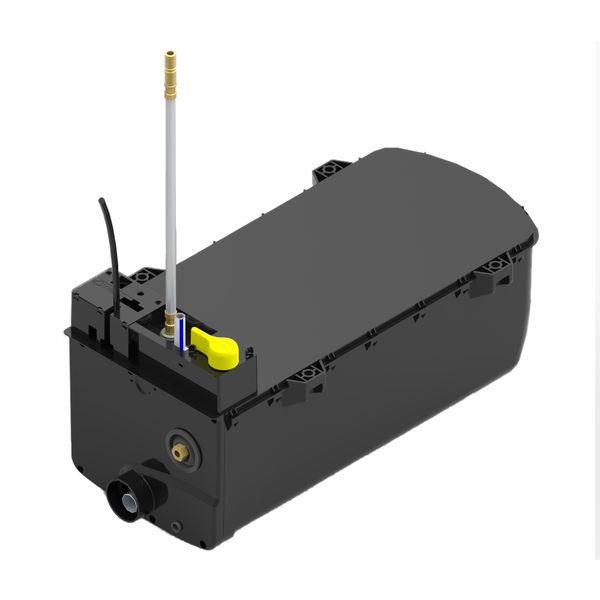

Underfloor Gas and Electric Water Heater (Install with Whale iVan® Control Panel).
Kit includes:
• 8-Litre Water Heater
• Control Panel
• 1 x 3.5M Cable
• 1 x 1.25M Flue
• 3 x Flue Brackets
• 1 x End Flue Bracket
Specs:
• Capacity: 8 Litre
• Pressure Relief Valve Setting: 3.0 Bar
• Maximum Water Inlet Pressure: 1.9 Bar
• Gas Type: Butane/Propane 30mbar CAT I3B/P (30)
• Heat Input (Gross): 285kW
• Gas Connection: 8mm compression fitting
• Current Consumption (12V. d.c): 0.48 Amps//(0.03 Amps on Standby)
• Electricity Supply: 12V d.c. + 230V a.c. 50Hz
• Electric Lowest Eco Setting: 750W
• Electric Highest Setting: 1500W
• Maximum Current Consumption (12V. d.c.): 0.48 Amps//(0.03 Amps on Standby)
• Maximum Current Consumption (230V): 6.5 Amps
• Maximum dimensions inside vehicle: Height: 180mm (underfloor), Width: 262mm, Length: 522mm.
PLEASE NOTE: All Whale Water Heaters must be installed and serviced by a fully qualified gas engineer in accordance with the appropriate installation instructions
