HTW-CLE-12-NOXLPG-HF

HTW 12L LoNox Room Sealed LPG water Heater With Horizontal Flue

  • Sale
  • Regular price £419.99
Tax included. Shipping calculated at checkout.


SPECIAL ORDER PRODUCT PLEASE SPEAK TO US ABOUT LEAD TIME

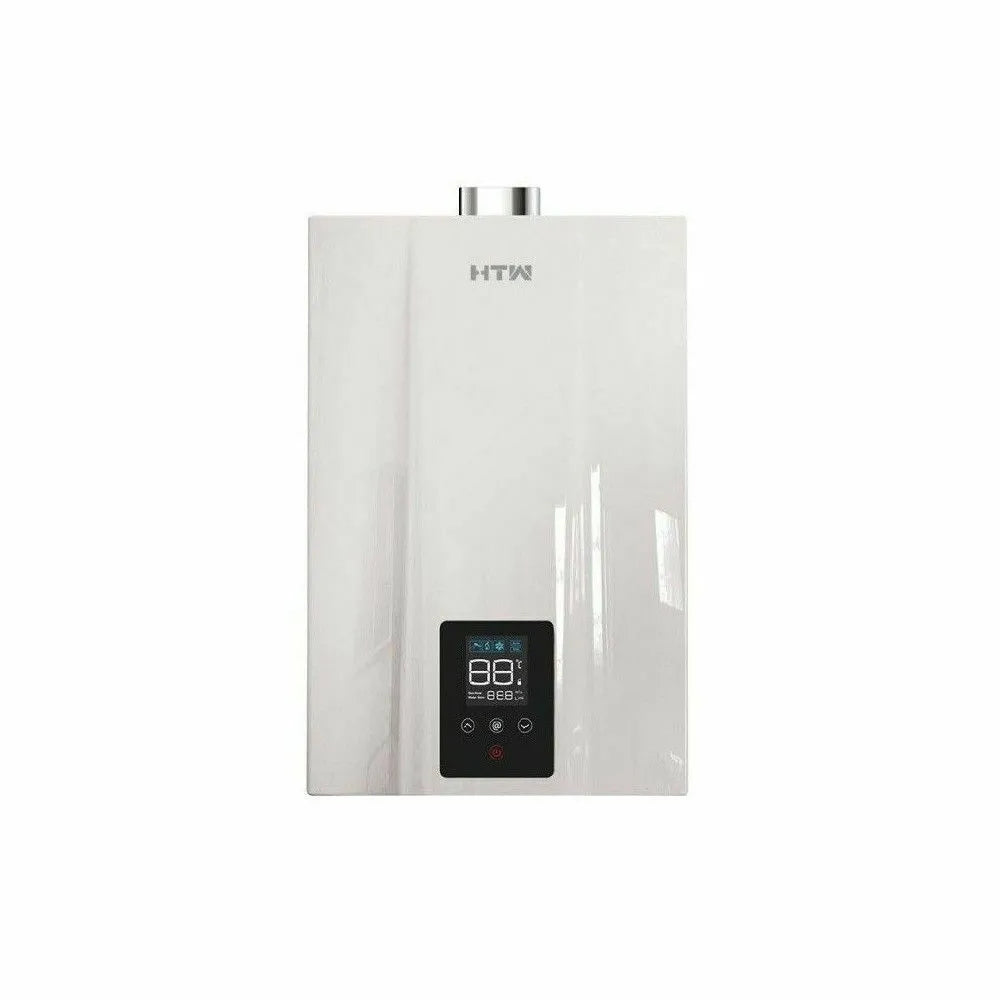

A wall-mounted, LPG room-sealed (balanced flue) water heater with an LED panel providing precise control of water temperature and gas safe operation.

The fan-assisted unit’s micro computer controls gas and air supply for maximum efficiency and combustion is constantly monitored by the transducer. The DC stepless variable frequency fan automatically adjusts to accommodate all conditions of water draw off, and wind conditions experienced at flue terminal.

The HTW short flame combustion technology reduces NOx emissions by 70%. The burner design allows a mix of high and low air mixing - the high air portion controls the combustion performance, and the low air portion produces a significant reduction in NOx.

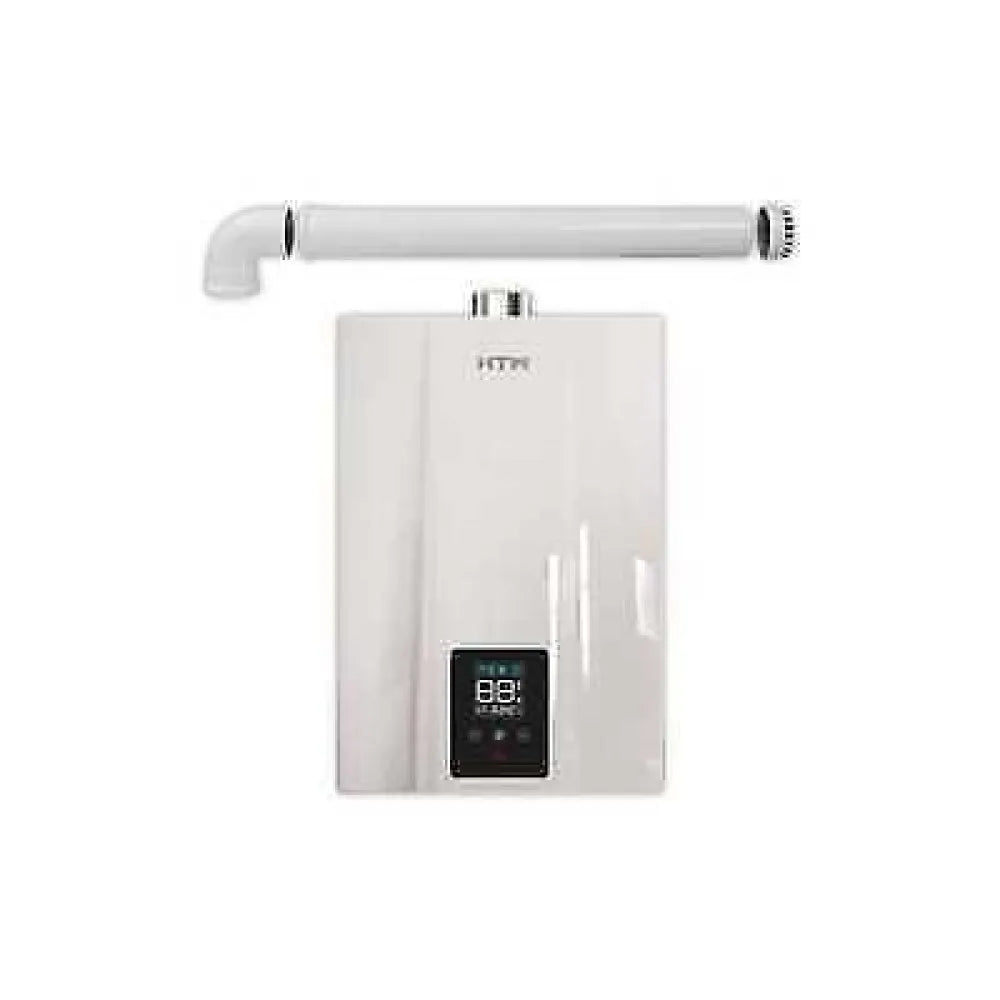

The LowNOX Heater has a watertight chamber that provides more than optimal security against any imbalance or irregularity of the heater. LowNOX is compatible with solar energy installations and has one of the thinnest bodies on the market, only 15cm deep. It includes a complete horizontal flue outlet kit and a multifunctional touch display where the DHW and heating temperatures are displayed and adjusted, error codes, heater modes, etc. are displayed.

Low NOx dual aeration burner design

Family safe - child low temperature interlock prevents accidental scolding

Gas type 37mbar - G31 propane only

Gas burner pressure internally regulated to 19.0mbar

Efficiency 78.3%



Energy classification A
Colour White
Input Power 24kw
Useful Power 21.4kw
Minimum input power 7.5kw
Minimum output power 6.1kw
Facility Interior Exterior
Combustion watertight
Gas Type Gas Butane G30 / Propane G31
Switched on Electronic Automatic
Gas pressure (Mbar) 28 — 30 / 37
Maximum pressure 10 bar
Minimum pressure (bar) 0.2
Maximum flow 12L/min
Minimum flow 8L/min
Water Temperature 35~65
Net dimensions (W×H×D) (mm) 345×570×150
Net weight / kg) 12.3
Gas Connection G1/2''
Cold Water Connection G1/2''
Hot Water Connection G1/2''
Ø Gas outlet (mm) Ø60/100
Gas outlet length 0.5 — 3
