3102-006

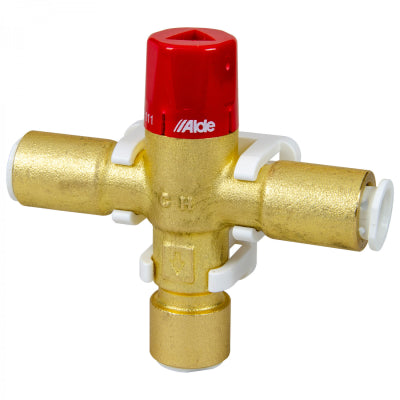

Thermostatic mixing valve with wall-mounting bracket.
For prevention of hot water scalds by mixing hot water with cold before the outlet.
Warm water temperature adjustable between 30 to 40 c. quick response with emergency cut-off and sediment filters. highest standard, suitable for nursery and elderly care environments.
Integral 12 mm jg speedfit connections, no adaptors necessary.
*technical data:
Width: 101 mm.
Height: 93 mm.
Depth with bracket: 30 mm.
Weight: 0,3 kg.
Maximum working pressure: 5,0 bar.
Minimum working pressure: 0,2 bar.
Minimum flow rate 15 mm: 1 l/min.
Temperature, hot supply: 55 c - 65 c (max 85 c).
Temperature, cold supply: 5 c - 25 c.
