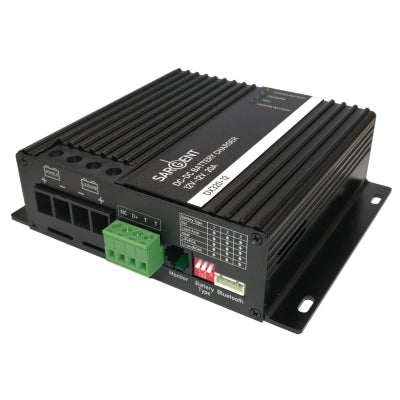

DX320-12
This dc-dc charger takes power from the vehicle battery and alternator, to provide rapid multi-stage charging of a leisure battery. the battery is more fully charged than using traditional relay systems and any voltage losses in cabling are reduced. an engine running input ensures the charger is compatible with both smart and standard alternators and selector switches provide the optimum charging profile for most battery types.
Power 260w
Input voltage range 10.5 - 15.4v
Output voltage range 8 - 16v
Output current 20a (max)
Standby current 17ma (max)
Regulation method buck / boost
Efficiency 12v 94
Engine run (d+) input yes
Dimensions (lxwxh) 147 x 118 x 41mm
Weight 460g
