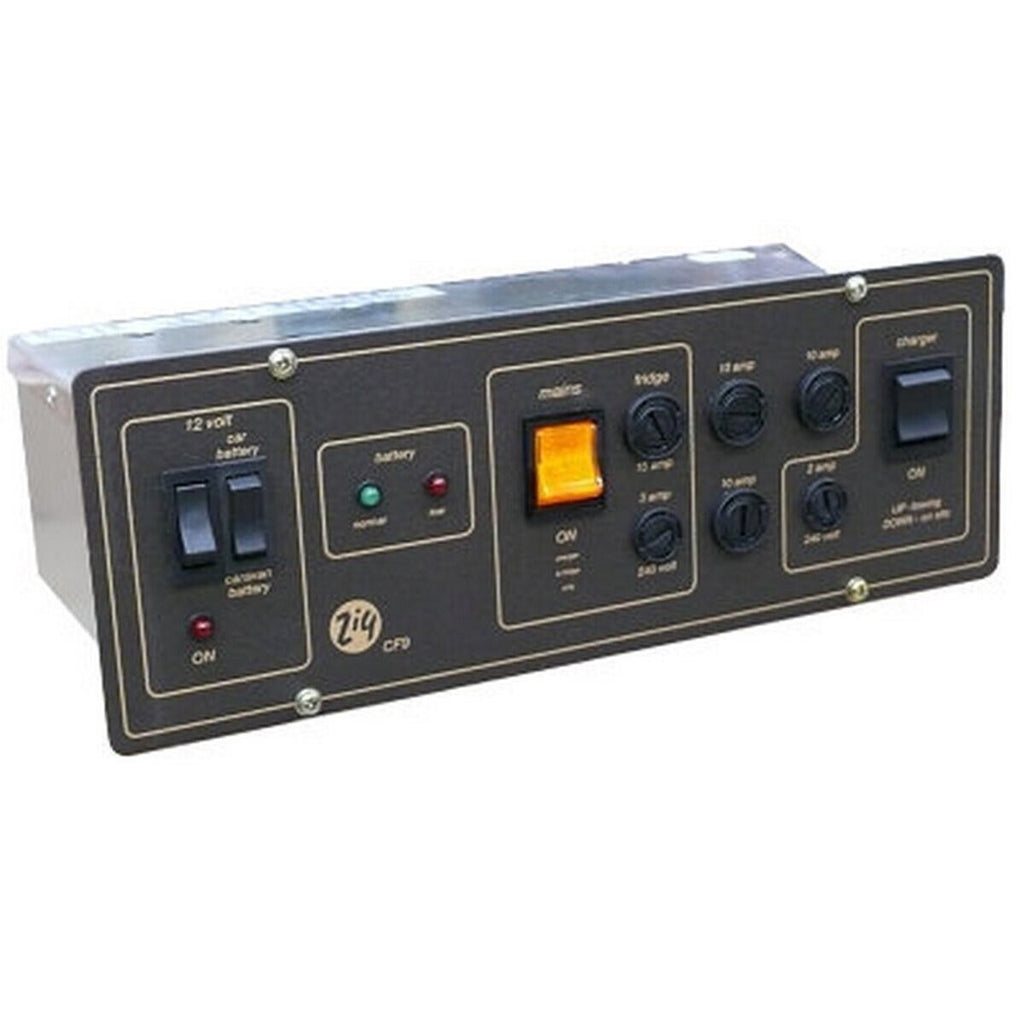

ZIG CF9
ZIG CF9 Charging distribution systems for Caravans / Vehicle Conversions and Boats. This item is complete with both 230V and 12V outputs for refrigerator. Automatic charging control, 12 Amp Battery Charging. Mains to 12V conversion - up to 4.5 Amps continuous, Multiple safety protection devices. Designed for use with 60Ah or greater leisure battery or batteries permanently in circuit. Screw terminal connections at rear.
Dimensions: Panel 293 x 105mm, Case 275 x 75 x150 deep approx.
Suitable trip box available in the Electrical Systems category. It is strongly recommended that the refrigerator is wired to operate only while the engine is running. The use of a relay such as Zig is recommended.
